SKT1 Series Class PC ATS

  • SKT1

  • AISIKAI

Availability:
Inquire

SKT series Automatic Transfer Switch(ATS) is the most advanced 3rd generation ATS.  It's of PC Class (one-piece structure). SKT standard type can handle current from 20A to 3200A.  It  reaches the highest AC-33A Use Class.


STANDARDS

IEC60947-6-1


FEATURES



  • Using LED indicators for working conditions

  • External replaceable fuses, easy for maintenance

  • Built-in Microprogrammed Control Unit(MCU) can detect Voltage


  • Copper bars are silver plated and have high purity

  • One-piece structure on Load side

  • Three-sections design (I – 0 – II)


  •  Zero Position for dual powers cutting-off

  • Pluggable wiring terminals

  • Mechanical Interlock & Electrical Interlock



Frame rating current Inm160A250A630A
Rated current In125A160A250A400A630A
Conventional thermal current Ith

63,80,100,125,140,150,160A


160,180,200,225,250A160,180,200,225,250,315,350,400,500,630A
Rated insulation voltage of copper bar Ui660V
Rated impulse withstand voltage Uimp6KV
Rated operating voltage of copper bar UeAC400V
Use categoryAC-33A
Rated operating current of copper bar Ie10,16,20,25,32,40,50,63,80,100,125,140,150,160,180,200,225,250,315,350,400,500,630A
Rated making capacity10Ie
Rated breaking capacity10Ie
Rated limit short-circuit current13KA
35KA
Transferring time1.2S
0.6S
Rated operating voltage of control power UsAC220V(special voltage DC24V, DC110V, DC220V, AC110V, AC280V)
Start40W325W
Normal18W62W
Weight5.3KG5.5KG7KG17KG17.5KG



Frame rating current Inm1600A3200A
Rated current In800A1000A1250A1600A2000A2500A3200A
Conventional thermal current Ith800,1000,1250,1600A
2000,2500,3200A
Rated insulation voltage of copper bar Ui800V
Rated impulse withstand voltage Uimp8KV
Rated operating voltage of copper bar UeAC400V
Use categoryAC-33A
Rated operating current of copper bar Ie800,1000,1250,1600,2000,2500,3200A
Rated making capacity10Ie
Rated breaking capacity10Ie
Rated limit short-circuit current50KA
75KA
Transferring time1.2S
2.4S
Rated operating voltage of control power UsAC220V(special voltage DC24V, DC110V, DC220V, AC110V, AC280V)
Start355W400W440W
600W
Normal74W90W98W
120W
Weight37KG44KG98KG



  1. 1. What will this ATS operate when a power failure occurs?
    In general, ATS will transfer to the standby power when the utility power(main power) fails.

    Also, ATS will transfer to the utility power when utility power returns. In this way, ATS ensures

    you have the continuous power.

  2. 2. What's the other control voltage besides 220V AC?

     AC110V, AC280V, DC24V are available. Please consult us for other voltages.

  3. 3. Can I operate this ATS  manually?
    Yes, our ATS have both electric and manual mode(switchable using the black button on front panel),
    you can operate our ATS using handler.

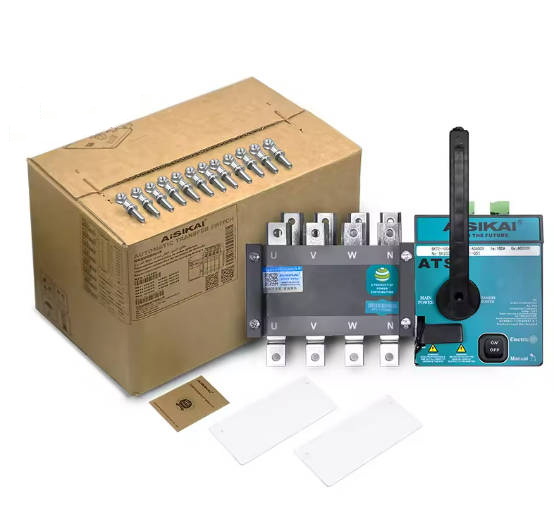

  4. 4. What does accessories list include?

    Scews and bolts; A pair of safety protection boards; A handler for manual operation.

  5. 5. Does this ATS must work with an ATS controller for automatic transfer?

    No, using this ATS alone is sufficient for the automatic transfer between 2 power sources.

    But with ATS controller, more functions can be achieved like delay before transfer, voltage detection,
    communication and etc.



download SKT-Automatic Transfer Switch User Manual-V2.6.pdf

download ATS-SKT Series Automatic Transfer Switch Catalogue.pdf

Previous:
Next:

Related Products

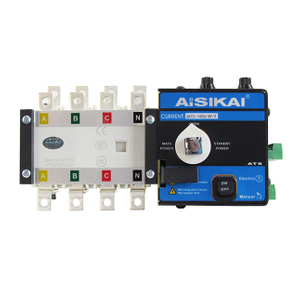

SKT2 Series Ultra-thin Class PC ATS
